Electronic Interlocking System
Flexible and Configurable Signaling System

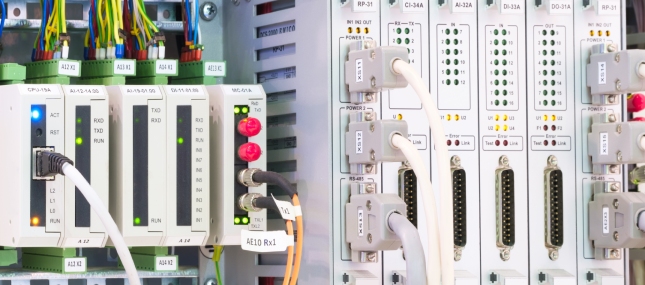

Vision Rail's Electronic Interlocking System is a modular, fail safe and configurable signaling system which meets CENELECSIL4 safety standards.
System has large vital input/output capacity and can be installed on a small or large station as a centralized or distributed installation with option to have centralized control to control multiple stations in a line section.
Vital OFC communication between vital sub-system can over a range of up to 120 km, without needing repeaters. Vision Rail's signaling system can interface with other systems such as ATP, CTC and other station equipment such as axel counters, data loggers etc.
Framework
Architecture
Vision Rails' 2002 Electronic Interlocking System ensures reliability with 100% hot standby and automatic changeover. It includes advanced features like route setting, track monitoring, and gate operation for safe, efficient signaling.
Adaptability
Vision Rails' Electronic Interlocking System provides exceptional adaptability, seamlessly integrating into diverse station layouts and configurations. Its scalable design ensures efficient control and quick upgrades for complex railway operations.
Implementation
Vision Rails' electronic interlocking system provides flexible centralized or distributed layouts, tailored for yard conditions. It ensures fast commissioning, no maintenance, and redundant optical fiber communication for reliability.
Features
Benefits
- Low initial investment even with different station sizes.
- Modular design for ease of maintenance and expansion.
- Improved safety and efficiency of railway network with system capability to handle heavy traffic.
- Customer friendly desk type panel processor or PC based Graphical User Interface.
- Online fault and event logging with troubleshooting guidance through maintenance terminal and remote monitoring.
- Technical training, offline and online after sales support and support and other user friendly, service support packages.
- Interlocking based on Boolean logic leading to faster design,verification and easier alteration.
